Punto Fuoco Pia Can Up pellet stove – 11 kW

Description

Punto Fuoco Pia Can Up pellet stove – 11 kW

Looking for a reliable pellet stove? The Punto Fuoco Pia Can Up from the Italian brand Punto Fuoco is the slimline Pia in a ducted version: just 33.2 cm deep and featuring standard PREMIUM ducting with dual ventilation for a second room. With 11 kW capital raised and 9.9 kW With its rated heat output, this stove heats rooms ranging from 200 to 300 m³ and achieves an efficiency of 89% (Pnom) — 93.5% (Pmin). Punto Fuoco manufactures all its stoves entirely in Italy (Vazzola, Treviso) and complies with the strictest European environmental requirements: energy class A+ and the highest 5-star environmental rating (DM 186).

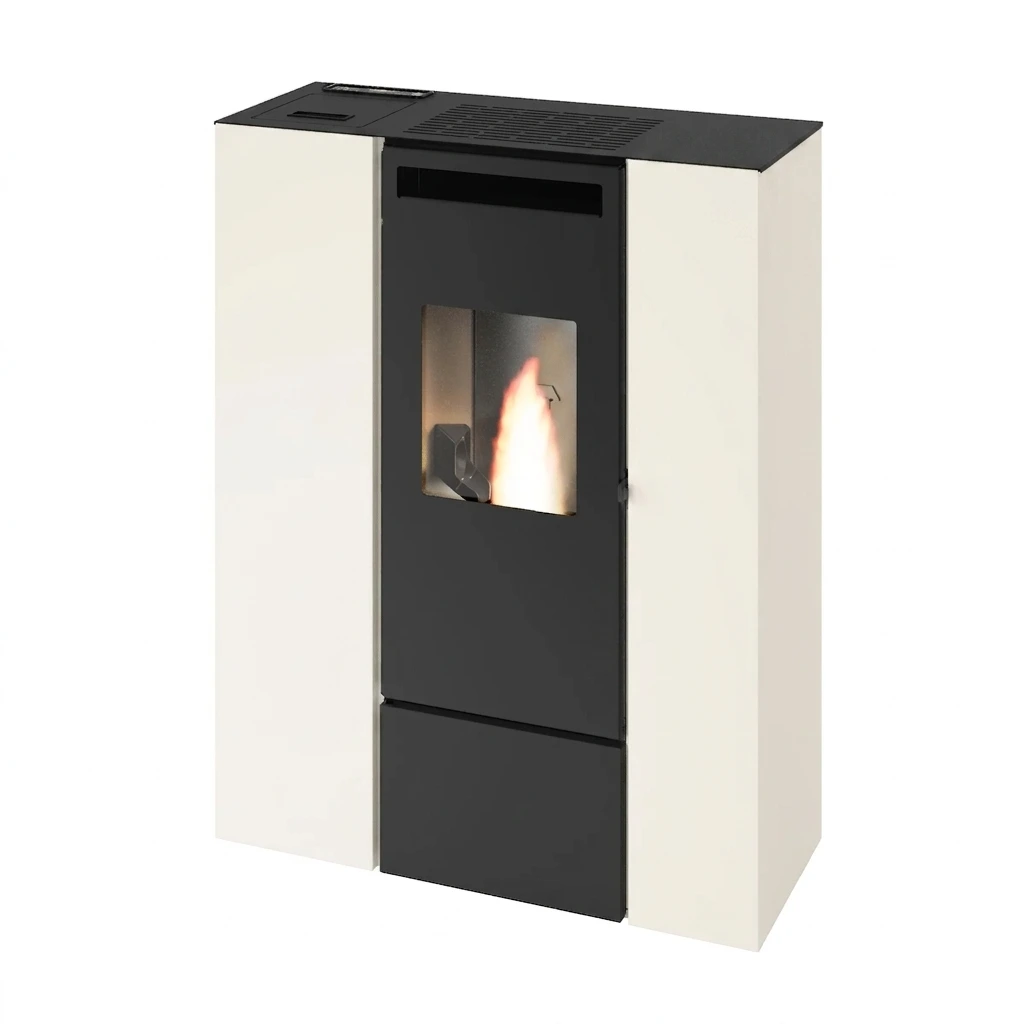

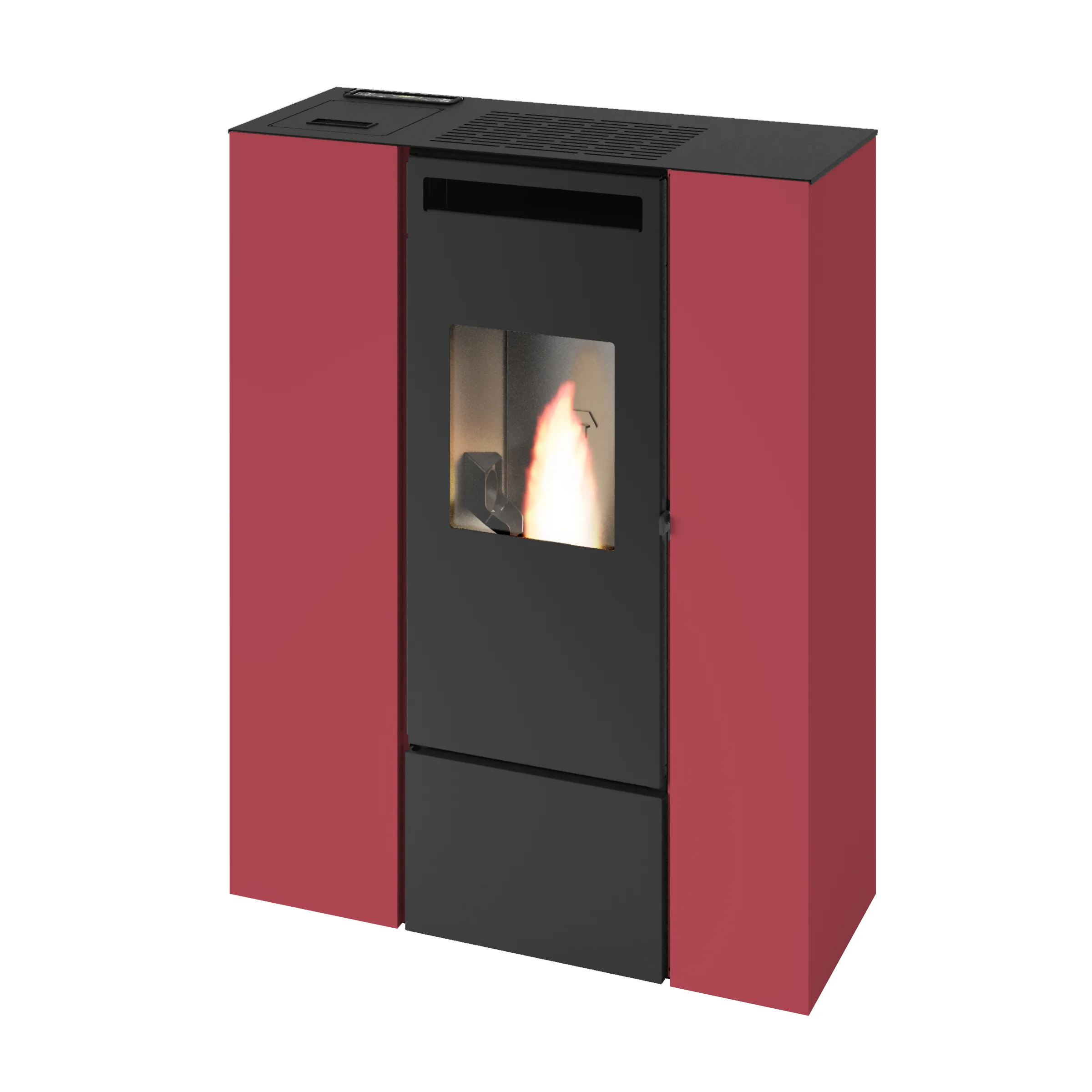

At the heart of the stove is a steel combustion chamber with a stainless steel burner pot — robust and built to last for years of use. Thanks to the PREMIUM ducting with dual ventilation It also directs warm air into an adjoining room — one heater, two heated rooms. The heater is available in the following colours White, Red and Black and so fits into any interior.

You can operate it via the 6-button LCD display (remote control included). Programme daily and weekly schedules and adjust the temperature and power setting; with the optional wifi module you can also control the stove remotely. The pellet hopper of 15 kg and a fuel consumption of 0.7–2.4 kg/hour ensures a long operating range, whilst the removable ash pan keeps maintenance simple.

Key features of the Punto Fuoco Pia Can Up:

• 11 kW power consumption — 9.9 kW nominal heat output, heats rooms up to 300 m³

• Efficiency: 89% (Pnom) — 93.5% (Pmin) — energy class A+ and 5-star environmental rating (DM 186)

• 15 kg pellet hopper — consumption 0.7–2.4 kg/hour

• Steel combustion chamber with stainless steel burner pot

• PREMIUM ducting with dual ventilation (as standard)

• Operated via a 6-button LCD display; remote control included — Wi-Fi module optional

• Compact dimensions: 65.3 × 33.2 × 102.2 cm (w × d × h) — 75 kg

• Flue gas outlet Ø80 mm (rear or side) — in accordance with EN 14785 – BImSchV II – LRV/VKF

The Punto Fuoco Pia Can Up has a flue gas outlet of Ø80 mm (rear or side), measures 65.3 × 33.2 × 102.2 cm (w × d × h), weighs 75 kg and complies with EN 14785 – BImSchV II – LRV/VKF and Ecodesign 2022. Ensure the minimum clearances from flammable materials are observed (30 cm to the side, 3 cm at the rear, 100 cm at the front). Installation must be carried out by a professional installer in accordance with the Belgian standard NBN B 61-002.

Technical specifications for the Punto Fuoco Pia Can Up

Frequently asked questions about the Punto Fuoco Pia Can Up pellet stove

What sort of room is the Punto Fuoco Pia Can Up suitable for?

The Punto Fuoco Pia Can Up heats a volume of 200 to 300 m³. With a standard ceiling height of 2.5 metres, this roughly corresponds to an area of up to around 120 m², depending on the insulation of your home. Well-insulated homes can cover a larger area; older buildings slightly less.

How many pellets does the Punto Fuoco Pia Can Up consume per hour?

Fuel consumption ranges from 0.7 to 2.4 kg/h. On a low setting, the stove maintains the temperature efficiently; on full power, it heats up quickly. With the 15 kg pellet hopper, you can expect a burning time of approximately 6 to 21 hours, depending on the setting.

Can I control the heater remotely?

The stove is operated via the LCD display with 6 buttons — including the remote control. With the optional Wi-Fi module, you can also control the stove via your smartphone: on/off, temperature, power setting and heating schedules — wherever you are.

Can this stove heat a second room?

Yes. The Punto Fuoco Pia Can Up comes as standard with the PREMIUM ducting system featuring dual ventilation. This allows you to heat an adjoining room, such as a bedroom or study, via a warm-air duct.

What type of flue does this stove require?

A Ø80 mm stainless steel flue that emerges above the roof ridge. On this stove, the flue gas outlet is located at the rear or on the side. Always have the installation carried out by a certified installer in accordance with standard NBN B 61-002.

What safety distances from flammable materials apply?

Keep a distance of at least 30 cm from the sides, 3 cm at the back and 100 cm at the front from flammable materials. The exact distances are set out in the installation manual; your installer will determine the final layout.

How often does this stove need servicing?

Clean the burner pot and the removable ash pan briefly every day or every few days (it takes just a few minutes). Professional maintenance, including chimney sweeping, is required once a year. Expect to pay between €120 and €180 for the annual maintenance.

Which pellets should I use?

Use certified wood pellets with a diameter of 6 mm (ENplus A1). High-quality pellets with a low ash content ensure cleaner combustion, less maintenance and a clear window.

What standards does the stove meet, and what is the warranty?

The Punto Fuoco Pia Can Up complies with EN 14785 – BImSchV II – LRV/VKF and Ecodesign 2022, with energy class A+ and the highest environmental rating of 5 stars (DM 186). A 2-year manufacturer’s warranty applies as standard.

Documents & downloads

• Official product data sheet for the Punto Fuoco Pia Can Up (PDF)
• Punto Fuoco Pia Can Up Technical Data Sheet (EN 16510 data) (PDF)
• Declaration of Performance (DoP) for Punto Fuoco Pia Can Up (PDF)
• ERP energy label for Punto Fuoco Pia Can Up (PDF)
• Punto Fuoco Pia Can Up Ecodesign Declaration (PDF)
• 5-star environmental certificate (DM 186) (PDF)
• Conto Termico 3.0 certificate (PDF)
